NGK Ignition Coil [48542] U5166

Product Introduction

NGK Spark Plugs offers superior ignition coils thanks to its advanced ignition system technology and strict quality standards cultivated over its long history.

In internal combustion engines using spark plugs, a high voltage of 20,000 to 35,000V is required to generate a discharge in the combustion chamber during the compression stroke.

An ignition coil is a type of transformer that converts 12V battery voltage into the high voltage required for spark plug discharge.

An ignition coil basically consists of a primary coil, a secondary coil, and a core, with an epoxy resin case to ensure insulation between these components.

If a malfunction is discovered in one cylinder, the ignition coils in the other cylinders may also deteriorate and may fail sooner. Therefore, we recommend replacing all cylinders.

Before purchasing, please verify the vehicle model, engine model, drivetrain, year, and grade on your vehicle inspection certificate and caution plate.

Also, be sure to confirm vehicle compatibility on the manufacturer's website below. *The above compatibility (vehicle model, year, and type) may not be compatible due to model changes or grade changes, so please be sure to check the NGK website for details.

Also, please be sure to check the NGK website for important installation information.

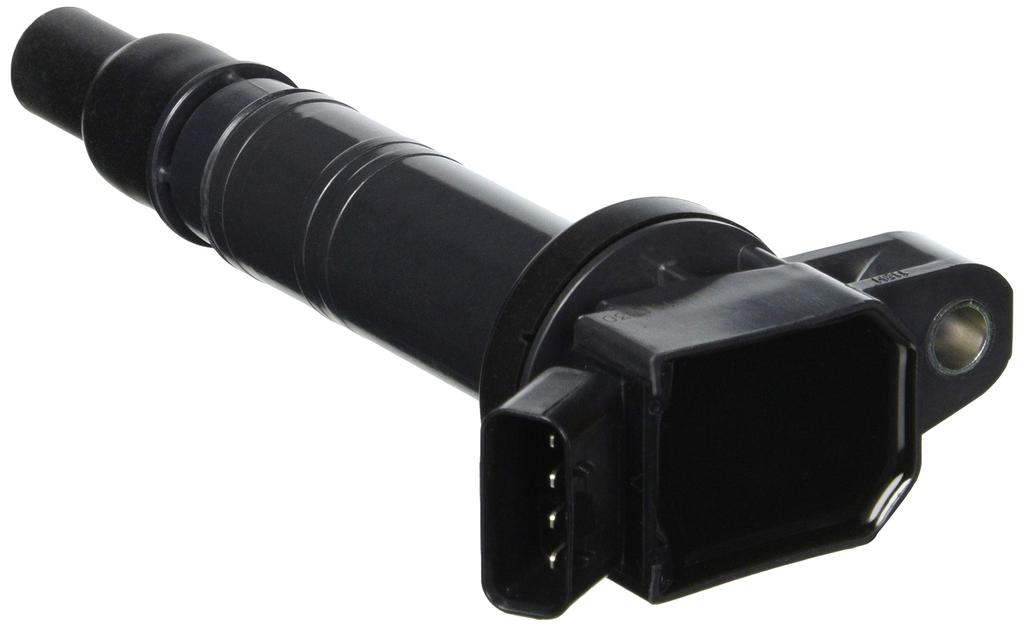

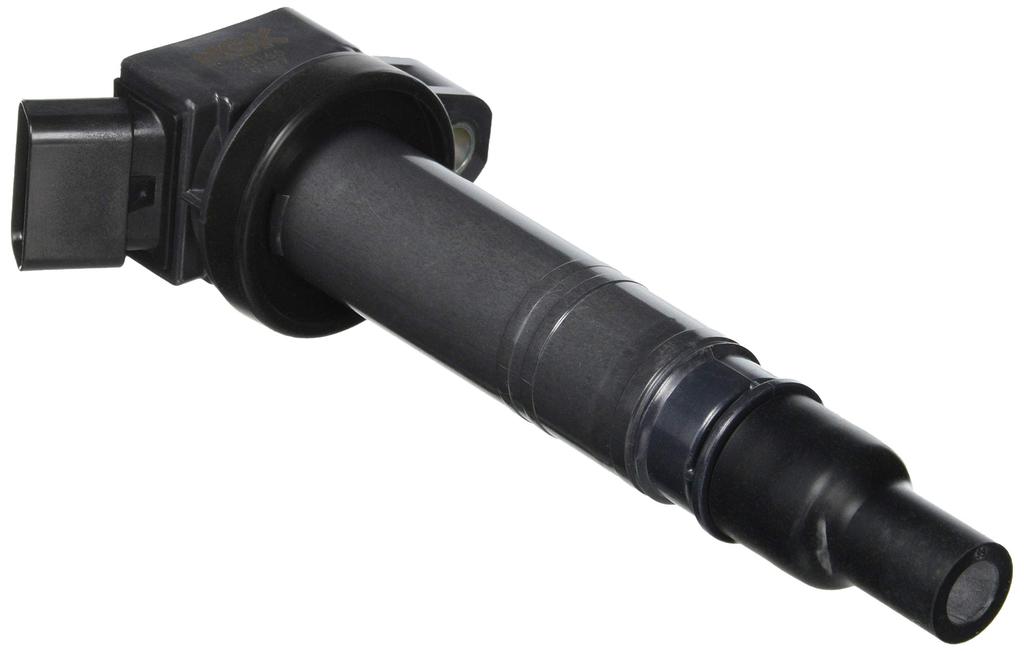

*The images shown are samples, so please note that the actual shape and color may differ. *Manufacturer website: http://www.ngk-sparkplugs.jp/products/other/ignitioncoil/list.pdf.

Precautions for Use

*Compatible with genuine part number 90919-02260. ◆Compatible models ■Altis Model: ACV40N, ACV45N Engine model: 2AZ-FE Year: April 2006 - February 2007 ◆Compatible models ■RAV4 Model: ACA31W, ACA36W Engine model: 2AZ-FE (Engine No. C-G) Year: May 2006 - February 2007 ■RAV4J/L Model: ACA20W, ACA21W Engine model: 1AZ-FSE (D4) Year: May 2000 - ■Isis Model: ANM10G, ANM10W, ANM15G, ANM15W Engine model: 1AZ-FSE (D4) Year: September 2004 - ■Avensis Model: AZT250, AZT250W, AZT255, AZT255W Engine Model: 1AZ-FSE (D4) Year: July 2003~ / Models: AZT251, AZT251W Engine Model: 2AZ-FSE (D4) Year: July 2003~ ■ Allion Model: NZT260 Engine Model: 1NZ-FE Year: May 2007~ / Model: AZT240 Engine Model: 1AZ-FSE (D4) Year: December 2001~ ■ Alphard Model: ATH10W Engine Model: 2AZ-FXE Year: September 2005~November 2005 / Models: ANH20W, ANH25W Engine Model: 2AZ-FE (Engine No. C~G) Year: December 2010~ ■ Alphard G/V Model: ANH10W, ANH15W Engine type: 2AZ-FE Year: September 2005 - November 2005 ■Alex Model: NZE121 Engine type: 1NZ-FE Year: April 2004 - ■Ist Model: NCP110, NCP115 Engine type: 1NZ-FE Year: July 2007 - ■Ipsum Model: ACM21W, ACM26W Engine type: 2AZ-FE Year: September 2005 - November 2005 ■Wish Model: ANE10G, ANE11W Engine type: 1AZ-FSE(D4) Year: April 2003 - March 2009 ■Vitz Model: NCP91 Engine type: 1NZ-FE Year: January 2005 - December 2010 Model: NCP131 Engine: 1NZ-FE Year: December 2010 onwards ■ Vellfire Model: ANH20W, ANH25W Engine: 2AZ-FE (Engine No. C-G) Year: December 2010 onwards ■ Voxy Model: AZR60G, AZR65G Engine: 1AZ-FSE (D4) Year: November 2001 onwards ■ Estima Model: ACR50W, ACR55W Engine: 2AZ-FE (Engine No. C-G) Year: June 2006 - February 2007 / Model: ACR50W, ACR55W Engine: 2AZ-FE (Engine No. C-G) Year: December 2010 onwards ■ Opa Model: ACT10 Engine model: 1AZ-FSE (D4) Year: August 2000 onwards ■Auris Model: NZE151H, NZE154H Engine model: 1NZ-FE Year: October 2006 onwards / Model: NZE181H, NZE184H Engine model: 1NZ-FE Year: August 2012 onwards ■Camry Model: ACV40, ACV45 Engine model: 2AZ-FE Year: May 2006 - February 2007 / Model: ACV40, ACV45 Engine model: 2AZ-FE Year: December 2010 - January 2011 ■Caldina Model: AZT241W, AZT246W Engine model: 1AZ-FSE (D4) Year: September 2002 onwards ■Corolla Model: NZE121 (AT) Engine: 1NZ-FE Year: April 2004 - September 2006 Corolla Axio Model: NZE141, NZE144 Engine: 1NZ-FE Year: September 2006 - / Model: NZE161, NZE164 Engine: 1NZ-FE Year: April 2012 - Corolla Fielder Model: NZE121G (AT) Engine: 1NZ-FE Year: April 2004 - September 2006 / Model: NZE141G, NZE144G Engine: 1NZ-FE Year: September 2006 - / Model: NZE161G, NZE164G Engine: 1NZ-FE Model Year: April 2012 onwards ■ Corolla Runx Model: NZE121 Engine Model: 1NZ-FE Model Year: April 2004 onwards ■ Corolla Rumion Model: NZE151N Engine Model: 1NZ-FE Model Year: October 2007 onwards ■ Gaia Model: ACM10G, ACM15G Engine Model: 1AZ-FSE(D4) Model Year: April 2001 to September 2004 ■ Kluger L Model: ACU20W, ACU25W Engine Model: 2AZ-FE Model Year: September 2005 to November 2005 ■ Kluger V Model: ACU20W, ACU25W Engine Model: 2AZ-FE Model Year: September 2005 to November 2005 ■ Comfort Model: TSS13Y ■Succeed Model: NCP160V, NCP165V Engine model: 1NZ-FE Year: September 2007~ ■Sienta Model: NCP81G Engine model: 1NZ-FE Year: September 2003~ ■Spade Model: NCP141, NCP145 Engine model: 1NZ-FE Year: July 2012~
