About this item:
1.Design: 12-Way blade fuse block makes your circuit at a glance; DIY corresponds to the label of the circuit. Gift: 5A,10A,15A,20A each 6Pcs, Label sticker,4pcs screws. Wire size: # 4-6 2.AWG,Single line terminal: Stud M4 (20A 32V DC.max).Wire diameter:12-16 AWG.
3.Safety: When the current is too high, the fuses will be blown, to avoid dreaded safety hazards of burning of electrical appliances or vehicle, main line terminal: M6 Bolt (75A 32V DC.max).
4.Features: The base is made of environmentally friendly PBT material, which is heat-resistant and flame-retardant, with better insulation, strong hardness, and safer use, with PC material insulation shell, dustproof and splash proof, better protect the fuse and fuse box.
5.Easy to Set Up: No need to worry about getting your fuse box ready to use. This 12-circuit fuse box is very easy to install.
6.Protect Equipment: Ceiling lights, headlights, fog lights, rocker switch, toggle switch etc., widely used in Vehicle Car Marine Boat Trailer RV Truck Bus Ship Tanker Van Caravan Camper.
Product advantages:
【1】 The product is made of PA66 anti flame retardant, high and low temperature environmentally friendly material, which fully meets the conditions that the fuse holder must have good mechanical strength, insulation, heat resistance, and flame retardancy, and should not produce phenomena such as breakage, deformation, combustion, and short circuit during use
【2】 All fasteners are made of stainless steel. The input and output end of the fuse box are fixed with tightened screws for faster installation. The fuse box is fixed with self-tapping screws for simpler and safer installation.
【3】 The product comes with a sticker that can be attached to the electrical appliance we are connected to according to the name on the sticker. When the fuse breaks, we can immediately identify which electrical appliance is at fault, saving time and effort
Specifications:

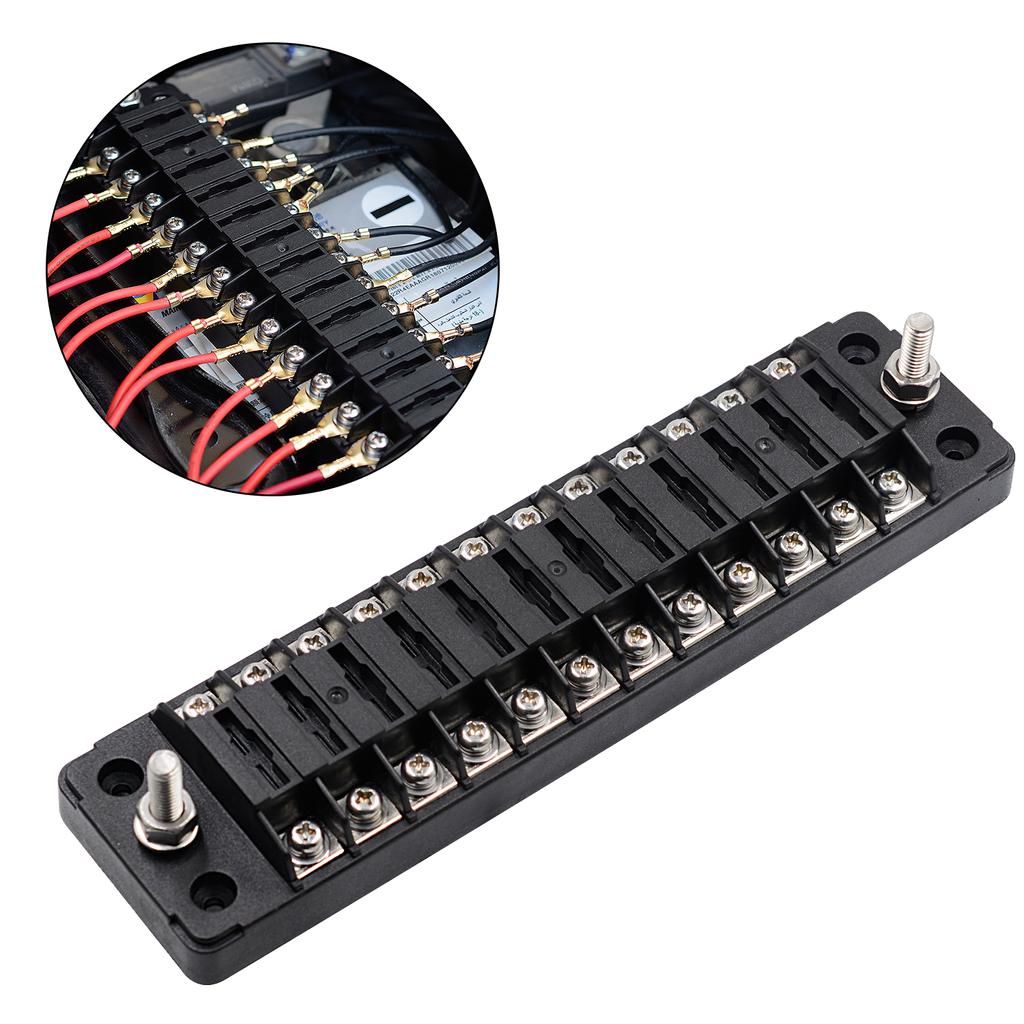

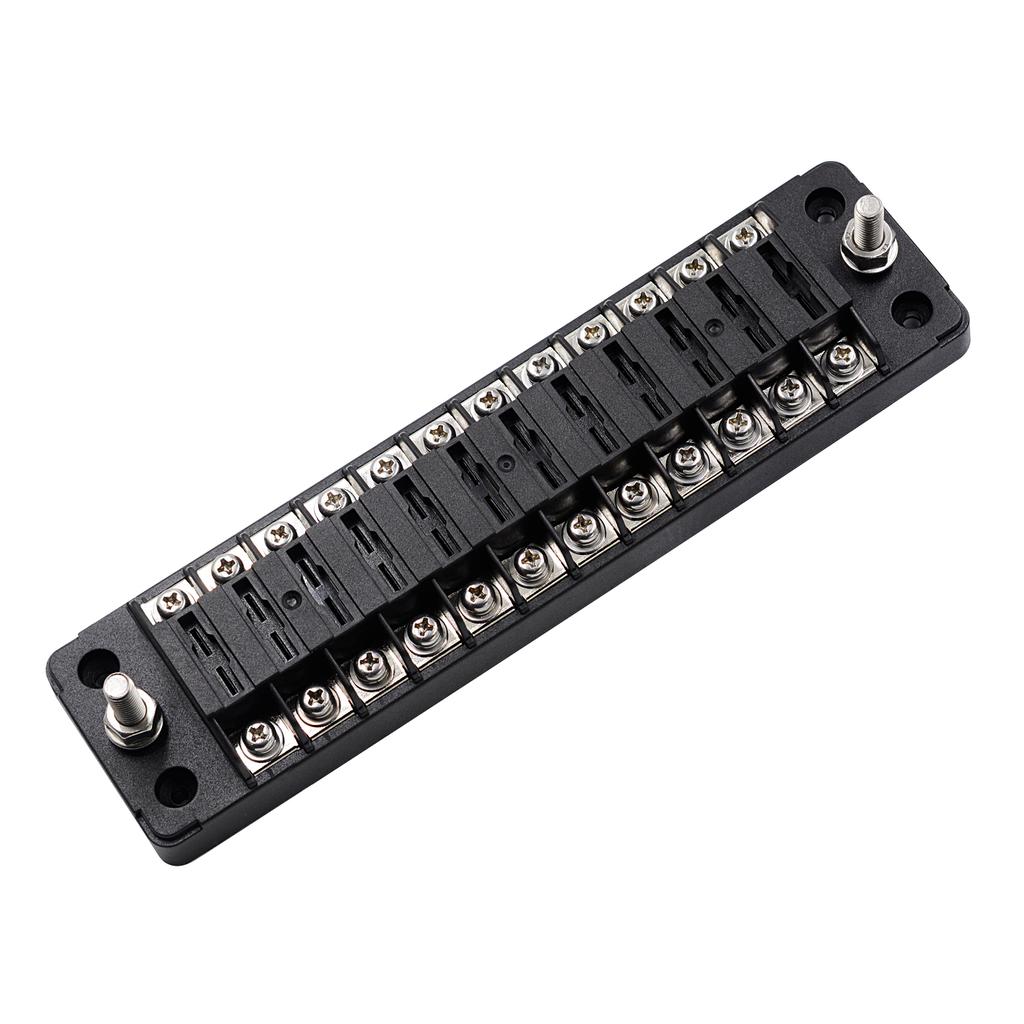

Product Name: FB1904 12 way one in one out fuse box (regardless of direction) without fuse blade
Product Model: CS-979A2
Net weight of product: 260g
Product gross weight: 266g
Product size: 19.5 * 5 * 5.2cm
Packaging method: PE bag
Packaging size: 30 * 13 * 5.5cm
Product Material: PA66 body, PC dust cover, nickel plated copper terminal block, stainless steel screws, PP × 70 sticker
Rated input voltage: 32V
Rated input current: 75A
Single wire terminal: M4 threaded stud (20A 32V DC maximum)
Wire specification: # 12-16AWG
Fuse type: accepts ATO or ATC fuses from 1A to 20A
Installation scope: Can be installed on small cars, off-road vehicles, RVs, buses, yachts, boats, etc.
Scope of use: It can be directly connected to the wiring of any electrical appliances on small cars/off-road vehicles/RVs/buses, yachts/boats, such as roof lights, car headlights, side lights, fog lights, warning lights, car refrigerators, car chargers, car fans, car TVs, etc.
The function of a fuse: When a circuit malfunctions or is abnormal, the current continuously increases, and the increased current may damage some important or valuable components in the circuit, burn the circuit, or even cause a fire. Fuses protect electronic devices from damage caused by overload currents and can also prevent serious injuries caused by internal faults in electronic devices. Therefore, each fuse has a rated specification, and when the current exceeds the rated specification, the fuse will melt. If the fuse is correctly installed in the circuit, it will automatically melt and cut off the current when the current rises abnormally to a certain height and temperature, thus protecting the safe operation of the circuit
Product accessories: sticker X2; Self tapping screw X4
