Feature:

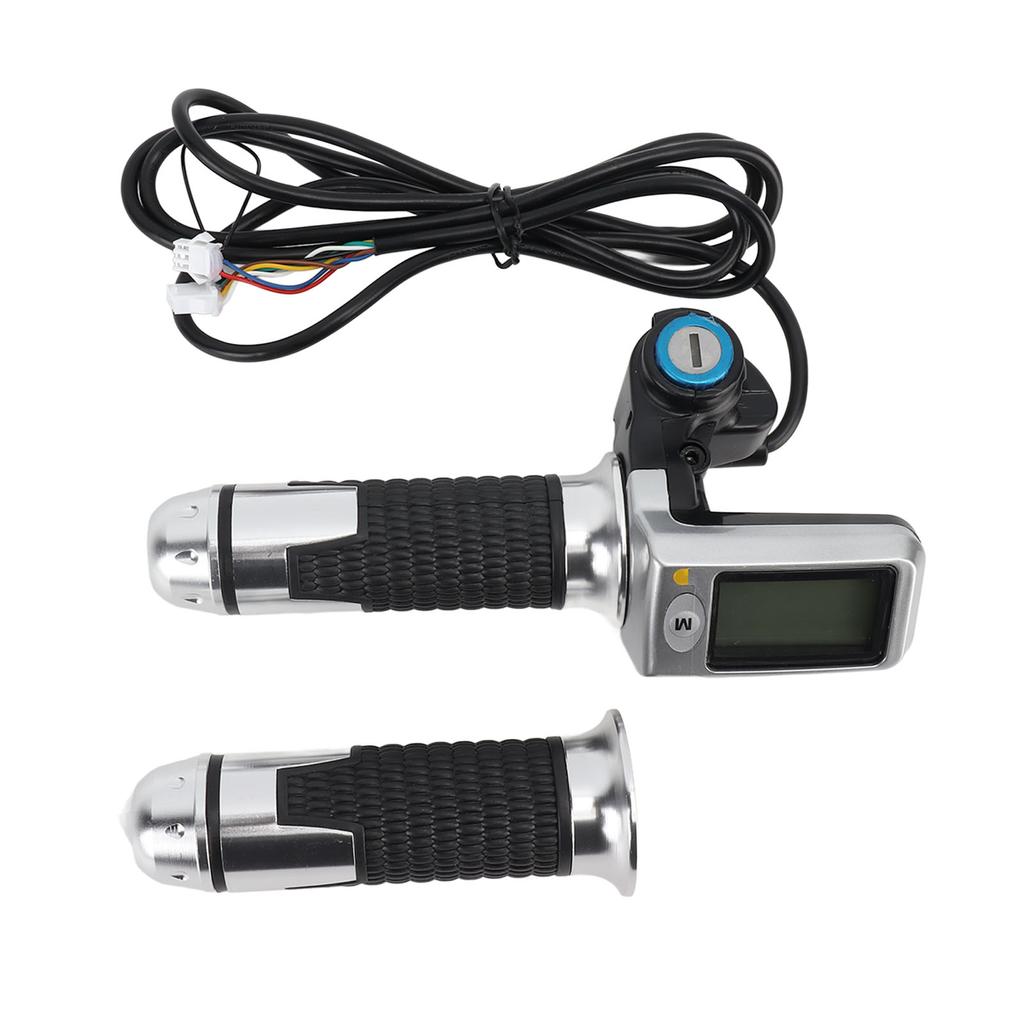

1. LCD Display Contents Include: Single and cumulative mileage, real time speed, battery power, gear indication, fault code interface, etc.
2. Controller Wiring Harness Functions Include: Positive and negative power supply, motor three?phase line, headlight interface, taillight, brake light interface, brake lamp headlight signal, battery power output, intelligent identification line, low brake power off, PAS1:1 power, speed control throttle turn, total switch (electronic control lock), LCD display interface, motor Hall interface.
3. Excellent Performance: This controller is made of superior metal with a notched design, durable, has superior heat dissipation function, which can protect the internal circuit so as to avoid thermal overload.
4. Main Applications: Suitable for 36V, 48V, 500W motor, can be used for the modification and replacement of damaged parts of electric power bike, electric bike, electric scooter, etc.
5. Easy to Install: The LCD Display is suitable for 22.5mm handlebars. Detailed operating instructions are attached below.
Specification:
Item Type: Motor Brushless Controller and LCD Display
Material: ABS, Aluminium Alloy
Weight: Approx. 696g 24.6oz
Voltage: 36V, 48V
Power: 500W
Current Limit: 28A
Low Voltage: 30V 42V.
Package List:
1 x LCD Display1 x Handlebar Grip
1 x Motor Brushless Controller
1 x Specification
2 x Keys
LCD Display Contents Include: Single and cumulative mileage, real time speed, battery power, gear indication, fault code interface, etc.
Controller Wiring Harness Functions Include: Positive and negative power supply, motor three?phase line, headlight interface, taillight, brake light interface, brake lamp headlight signal, battery power output, intelligent identification line, low brake
Excellent Performance: This controller is made of superior metal with a notched design, durable, has superior heat dissipation function, which can protect the internal circuit so as to avoid thermal overload.
Main Applications: Suitable for 36V, 48V, 500W motor, can be used for the modification and replacement of damaged parts of electric power bike, electric bike, electric scooter, etc.
Easy to Install: The LCD Display is suitable for 22.5mm handlebars. Detailed operating instructions are attached below.
